FUTURA NE RS
The high-performance bestseller with reduced kerf loss for non-ferrous metals
Product level 3
Trapezoid tooth
Solid materials
Band width 41 x 1.3 – 80 x 1.1mm
Description
The high-performance bestseller with reduced kerf loss for non-ferrous metals
Supplier for Wikus Bandsaw Blade in India
Application

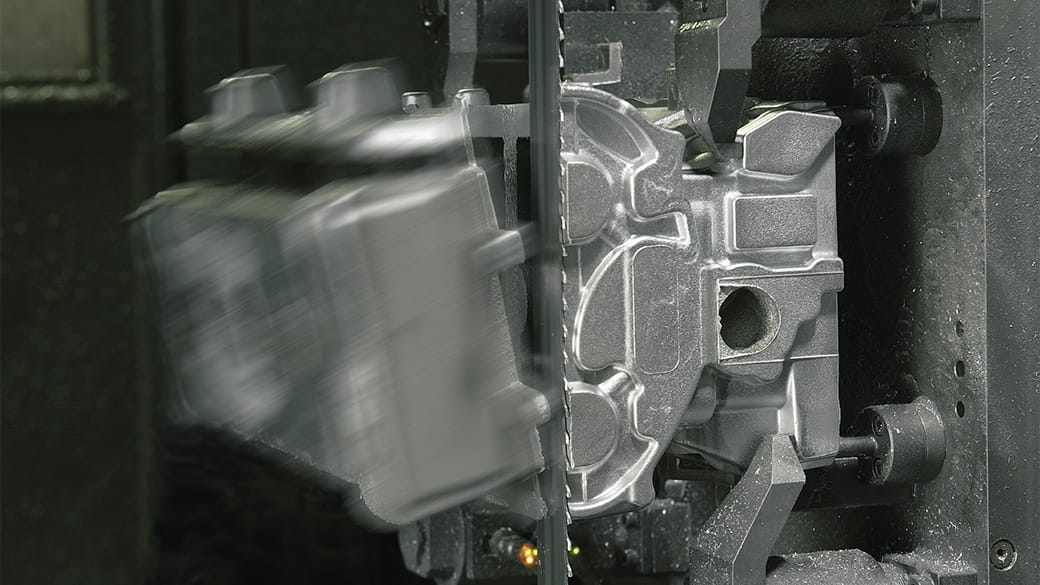

- Cutting of aluminum ingots, aluminum plate production
Advantages
- Extreme cutting performance by reduced cutting volume
- Optimised ingot output by reduced offcut
- Perfect cutting surface for lower finishing
Features
- Special grinding for reduced kerf width
- Ground trapezoid tooth with positive rake angle
- Optimal chip division for performance and surface quality
Technical Data
| Dimensions | Tooth pitch in ZpZ | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width x thickness | variable | |||||||||||
| mm | Inch | 1.4-2 | 0.85-1.15 | 0.7-1 | ||||||||
| 41 x 1.30 | 1-5/8 x 0.050 | T | ||||||||||
| 54 x 1.30 | 2-1/8 x 0.050 | T | ||||||||||
| 54 x 1.60 | 2-1/8 x 0.063 | T | T | |||||||||
| 80 x 1.10 | 3-1/8 x 0.042 | T | T | |||||||||
| Contact length | [mm] [Inch] |
290-550 1.2-2.4 |
700-1400 27.6-55.1 |
900-2000 35.4-78.7 |
||||||||
T = Trapezoid tooth
Materials Overview
- Aluminium / aluminium alloys
- Non-ferrous metals
